CURRENT PRODUCTS

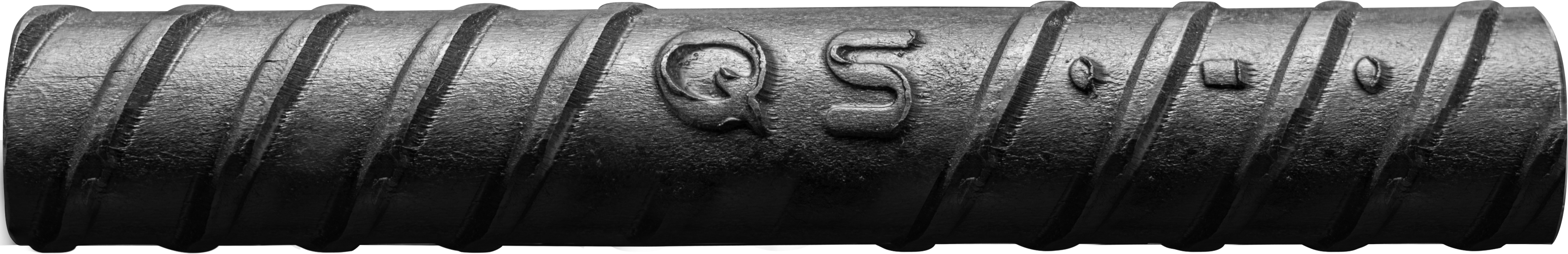

REBARS

Our main production line is focused on rebars with sizes ranging from 10mm to 32mm in accordance with BS4449: 2005 Grade B500B

TECHNICAL FEATURES

BS4449:2005 GrB500B rebars are produced with low carbon & Weldable, however ASTM A615 Gr60, Gr75, Gr80, ASTM A706 Gr 60, QS600, ISO 6935-2 B500B-R and SASO ASTM A615:2015 are Non-Weldable

BS4449:2005 GrB500B rebars have High Strength compared to ASTM A615 Gr60 which reduce steel consumption & overcrowding in structure, which in turns reduces overall cost of project

BS4449:2005 GrB500B rebars have High Yield Strength with minimum 500 Mpa compared to ASTM A615 Gr60, without compromising on ductility



BS4449:2005 GrB500B rebars have better bend performance, due to severe bend & re-bend angle. Rebars confirming to BS 4449:2005 specifications are subjected to fatigue testing and survive minimum 5 million stress cycles



REBAR SPECIFICATION

Characteristics	BS 4449:2005 Gr B500B	QSTEEL
Chemical Composition
% of Carbon (C)	0.22 Max	0.22 Max
% of Manganese (Mn)	………	0.60 Min
% of Phosphorous (P)	0.05 Max	0.035 Max
% of Sulphur (S)	0.05 Max	0.035 Max
Nitrogen (N) ppm	120 ppm	100 ppm Max
Carbon Equivalent (CE)	0.50 Max	0.40 Max
Mechanical Property
Yield Strength (Mpa)	500 Min	550 Min
Tensile Strength (Mpa)	………	………
Ts/Ys Ratio	1.08 Min	1.08 Min
Elongation (%) At fracture (A5)	14 Min	16 Min
Agt (%)	5 Min	6 Min
RRA	0.040 Min for≤12mm & 0.056 Min for >12 mm	0.045 Min for≤12mm & 0.060 Min for >12 mm
Weight Tolerance (%)	±4.5	±3.5
Bend	90°	90°
Re-bend	From 90° to back 20°	From 90° to back 20°
Weldability
Weldable/Non-Weldable	Weldable	Weldable



NOMINAL DIMENSIONS, WEIGHT & TOLERENCE

Designation	Nominal Dia. (d) (mm)	Nominal Cross Section Area (mm2)	Unit Mass (kg/m)	Nominal Mass kg/piece 12m
D10	10	78.54	0.617	7.40
D12	12	113.1	0.888	10.66
D14	14	153.9	1.21	14.52
D16	16	201.1	1.58	18.96
D18	18	254.5	2.00	24.00
D20	20	314.2	2.47	29.64
D22	22	380.1	2.98	35.76
D25	25	490.9	3.85	46.20
D28	28	615.8	4.83	57.96
D32	32	804.2	6.31	75.72

Note: Any other special requirement can be supplied as per customer’s requirement

Currently, our products are sold locally with future plans that include nearby markets and possibly on an international level



FUTURE PRODUCTS

While the current focus is on rebars, our future production expansion plans include Wire Rods, Light Sections, Steel Billets, Sheet Piles and possibly other products. QSTEEL is not only focused on delivering a high-quality product but also on expanding the range and catering to a multitude of clients and markets, locally and internationally
